Introduction
TYPICAL APPLICATIONS:

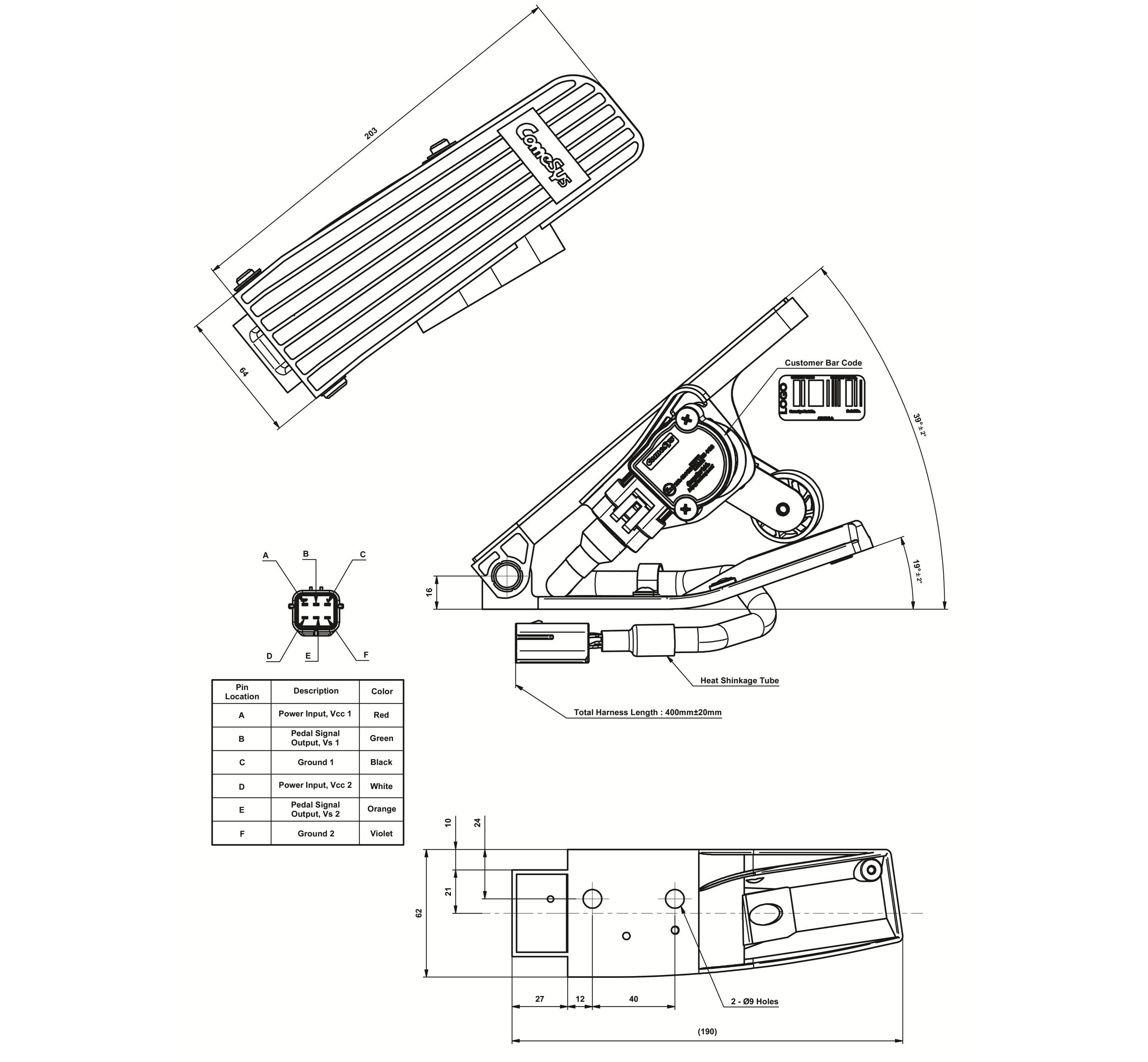

Accelerator pedal for electronic throttle control systems
Features/Benefits:
Output: Single, Dual output, PWM, CAN Bus as per SAE J-1939
Switch: Double, Electronic or mechanical
Hysteresis: Dual load/return force generation in compliance with FMVSS 124
Compact size, weight: approx. 650 g
Connector: AMP J-Series
Option: Delphi, Deutsch, Packard weather seal or as requested.
TYPICAL SPECIFICATIONS
Life: - 10 M Cycle at Full Travel
Electronics
Seal Integrity: IP67
ESD: Tested in accordance with IEC 61000-4-2
EMS: As per ISO 11452-2 (2004E)
Input Voltage : 5 / 12 / 24 / 48 / 72 Vdc as requested
Signal and Switches: Signal type and switch position to be in accordance with customer specification.
Mechanical
Pedal Travel: 17.5 +/- 2deg
Pedal Force: Initial Load 9N min, Full Throttle 33N max.
Adjustable as per customer specification.
Measured at a point of 150mm from the pedal pivot axis.
End-Break: 160kgf +/-5kgf
Environment Operation Temp.: -40 ~ +85
Storage Temp.: -40 ~ +105
Vibration: Subject to broadband random vibration between 20 and 2000Hz for 20 hrs in all 3 axis.
Shock: After exposed to Acceleration 20G for 11ms
Salt fog: After exposed to Salt Fog 96 Hours (JIS Z2371)
Impact: Free drop onto a smooth concrete floor from a height of one meter, a total of 6 times.
